Description

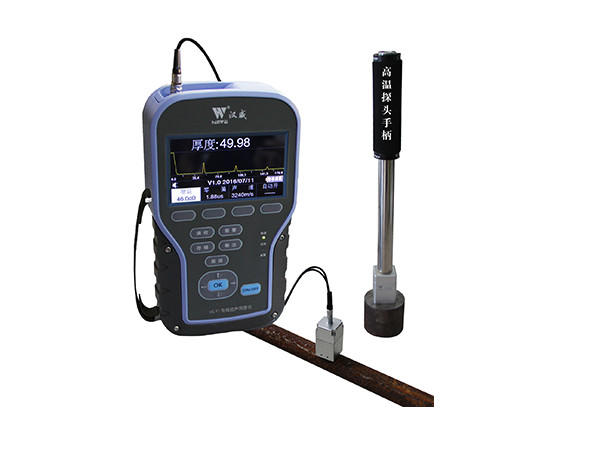

The HS F1 Electromagnetic Ultrasonic Thickness Gauge is a new portable electromagnetic ultrasonic thickness gauge that uses EMAT probes to detect any metal or magnetic material. The instrument work without coupling agent, detection speed quick, repeatability, and can be used for high temperature workpiece (up to 600 °). Probe and the measured object is not in direct contact with the surface roughness, surface coating (paint, rust, etc.) of the material testing.

Performance
- Innovative development of non-contact thickness measurement instrument (probe suspended), to subvert the traditional.

- HD TFT color high resolution screen display, without glare effect.

- Small body, function, waveform, measurement results at a glance.

- The measurement accuracy is higher than that of the conventional longitudinal wave thickness measurement, and the measurement is more relaxed by using the method of transverse wave vertical incidence.

- Electromagnetic method to excite the ultrasonic wave, the work-piece is the source of the ultrasonic wave, not affected by the angle, the measurement results and the probe zero bias is not related, the measurement accuracy is higher.

- The probe can be lifted, and the thickness of the rough work-piece with the oxide skin and the paint layer can be measured.

- In testing, do not need coupling agent, no impact on the environment, reduce human and material resources and financial resources.

- Large temperature range, high temperature environment, the use of large thickness measurement, and no high temperature coupling agent, such as high value of the material consumption, low cost.

Technical Parameters
Display: 4.3 "TFT LCD

Sampling frequency: 10bit/200MHz

Bandwidth: 500kHz-8MHz

Excitation voltage: 600V

Work-piece temperature range: -10℃ to 600℃ (based on different probes)

Detection range: 1mm~200mm (extensible to 400mm)

Measurement accuracy: 0.01mm

Lift off height: 3mm

Excitation mode: permanent magnet (electromagnetic mode can be customized)

Gain: 0-80dB (adjusting precision 0.1dB/2dB/6dB)

Equivalent input noise: < 80 * 10-9V/Hz1/2

Attenuator precision: < + 1dB/12dB

Vertical linear error: < 3%

Horizontal linear error: < 0.2%

Detection mode: positive and negative detection, detection and RF

Battery: 7.4V DC, lithium battery, continuous work for 4 hours

Weight of the whole machine: 0.75kg


Standard Configuration
1 Host one

2.Charger one

3.lithium battery one

4.Probe line (0L2-0L2) two

5.Hand-held electromagnetic thickness probe one

6.Data cable one

7.Analysis software CD one

8.Hand band one

9.Instrument box one

10.Instructions, certificate, warranty card each one
